2.4.2 Changing rules parameters

Each rule in Rules Composer has its own set of parameters. All rules in ChartNexus come with a set of default parameters but you can edit and change them to your own value. Figure 2.3 illustrates simple steps to change a rule’s parameters.

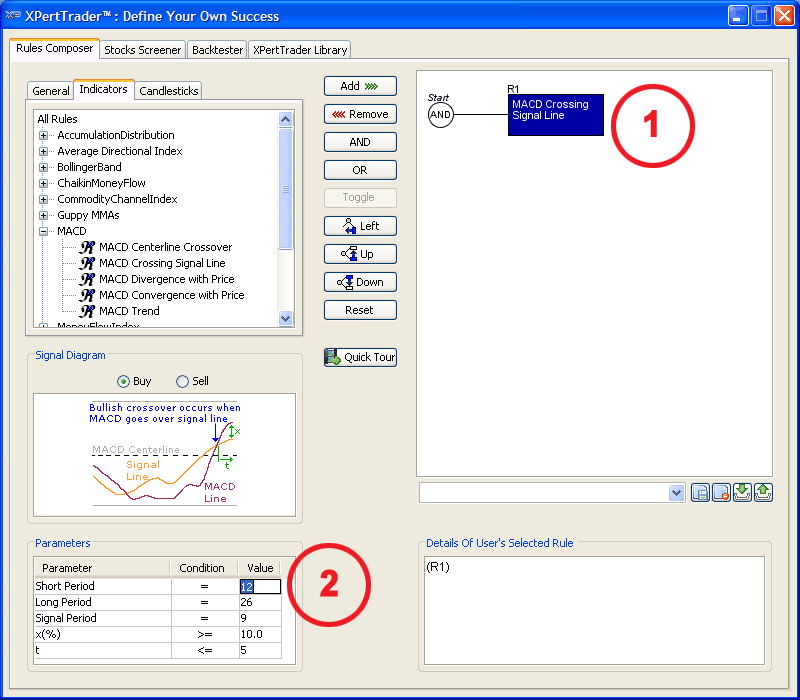

Figure 2.3: Rules Composer - changing parameters.

1. Click on the rule that you want to change to activate the Parameter window as shown in Figure 2.3 (2).

2. Double click on the specific parameter to edit it and change to the value that you want.

3. Save the changed rule to any name that you want. The saved rule will contain the changed value.
