2.7 Uninstall ChartNexus from Cache

Since Version 3.0, CharNexus is installed and launched using a Java technology called Java Web Start (JWS).

To clean existing ChartNexus installation from JWS, you need Java Control Panel which is accessible from Control Panel in Microsoft Windows (see Figure 2.7) or Spotlight in Mac (see Figure 2.8).

$\includegraphics[width=0.8\textwidth ]{control_panel_java_icon.png}$

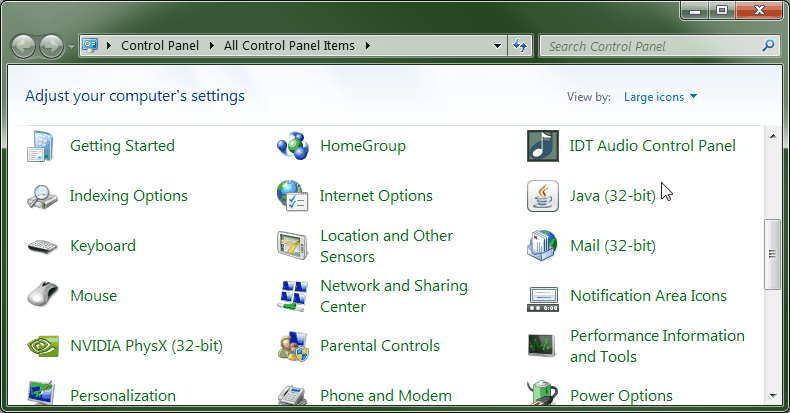

Figure 2.7: Control Panel with Java Icon in Windows

$\includegraphics[width=0.8\textwidth ]{mac-java-preferences.png}$

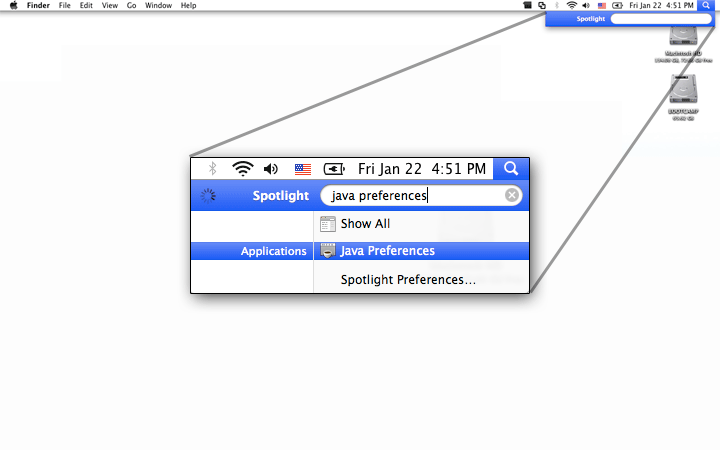

Figure 2.8: Launch Java Preferences with Spotlight in Mac

Once you are in Java Control Panel (see Figure 2.9), click on the ’View’ button under ’Temporary Internet Files’. You will be brought to Java Cache Viewer (see Figure 2.10).

$\includegraphics[width=0.8\textwidth ]{java_control_panel.png}$

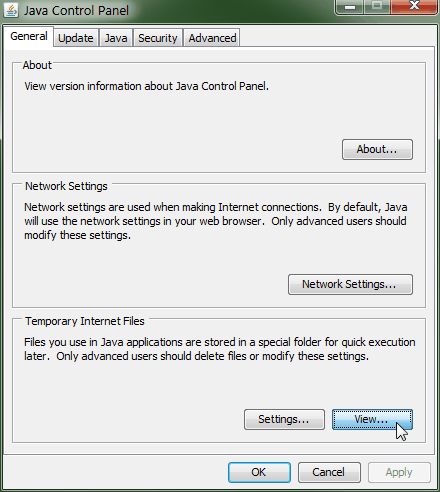

Figure 2.9: Java Control Panel View

$\includegraphics[width=0.8\textwidth ]{erase_java_cache1.png}$

Figure 2.10: Java Cache Viewer Panel

Then, select ChartNexus entry from the cache list and click on the ’Remove’ or ’Delete’ button to remove the cache.
