5.2 Capturing Candlestick Patterns

With this feature, you can easily record or capture potential candlestick patterns directly from the chart without having to reproduce or compose them with the Candlestick Patterns Editor.

Click on the Capture button located in Candlestick Patterns Editor (see Figure 5.3).

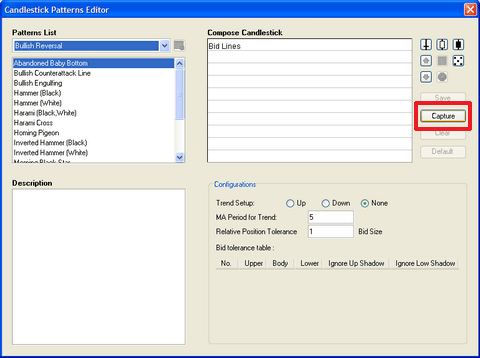

Figure 5.3: Accessing the candlesticks capturing feature.

After you click on the Capture button, a minimized Capture Pattern window will appear in the main ChartNexus window, see Figure 5.4.

Figure 5.4: Capture candlesticks window appears in the ChartNexus main window.

Next, click on the Capture button. Click on a point in the chart that you wish to capture or record the candlestick pattern by dragging and holding your mouse click over the region (see Figure 5.5).

Figure 5.5: Drag and hold your mouse click to capture the candlestick patterns that you are interested.

After captured successfully, the recorded candlestick pattern will appear in the Candlestick Patterns Editor, refer to Figure 5.6.

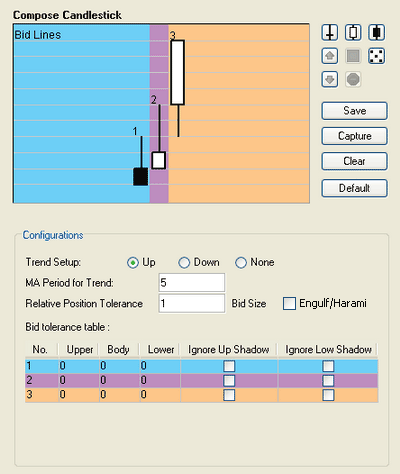

Figure 5.6: Candlestick pattern captured.
